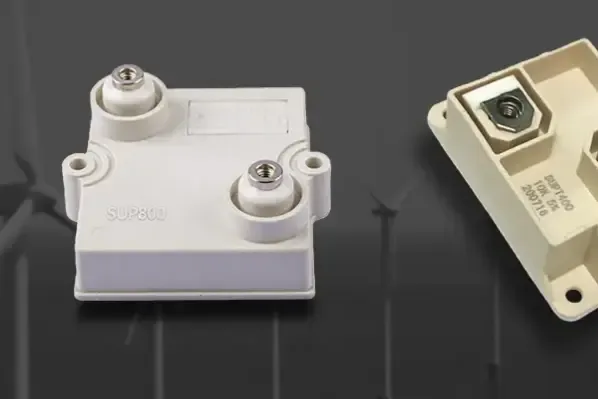

Our metal foil resistors are engineered to meet the demanding requirements of wind turbine voltage balancing systems. Designed with advanced planar technology and a serpentine pattern, these resistors deliver zero inductance (0.5µH) and exceptional current-handling capabilities, ensuring stable performance in high-power renewable energy environments.
Key Advantages: ✅ Non-Inductive Design for High-Frequency Stability The unique serpentine foil pattern eliminates parasitic inductance, making these resistors ideal for applications requiring rapid current changes and EMI reduction.
✅ 1000W Power Handling & 10kV Dielectric Strength With a compact footprint (61×60×26mm), these resistors offer 1000W continuous power dissipation and withstand voltage up to 10kV, ensuring reliability in high-voltage wind power systems.
✅ Efficient Water-Cooled Thermal Management Integrated with a water-cooled plate, the design enables rapid heat dissipation, maintaining optimal operating temperatures even under extreme load conditions.
✅ Wide Resistance Range (0–100Ω) & Precision Alloy Material Constructed from nickel-chromium alloy, these resistors provide a broad resistance range (0–100Ω) with ±5% tolerance, balancing durability and precision for dynamic load applications.
✅ Superior Surge Current Capacity Engineered for low-resistance, high-current scenarios, the robust foil structure withstands repetitive surge currents, minimizing downtime in harsh wind energy environments.
Applications:
- Wind turbine voltage balancing
- Renewable energy grid stabilization
- High-power inverter/converters
- Industrial motor drives
Why Choose Metal Foil Technology? Compared to thick-film resistors, metal foil offers 10x higher surge tolerance and 50% lower thermal drift, ensuring long-term stability in mission-critical systems.
Technical Specifications:
- Power Rating: 1000W (forced cooling)
- Dimensions: 61×60×26mm
- Voltage Withstand: 10kV AC/DC
- Resistance Tolerance: ±5%
- Inductance: <0.5µH
- Cooling: Direct water-cooled plate integration
Enhance Wind Turbine Efficiency with Zero-Inductance Resistors Our metal foil resistors combine compact design, high power density, and advanced cooling to optimize wind energy systems. Partner with us for custom resistance solutions tailored to your renewable energy projects.
