In high-power electronics—from electric vehicle test benches to renewable energy inverters and industrial motor drives—efficient, compact, and reliable power management is non-negotiable. Enter the 15–20kW diamond liquid-cooled resistor, a breakthrough in thermal engineering that redefines performance for dump resistors, load resistors, pulse resistors, and absorption resistors.
Why Diamond? The Material Revolution
At the heart of this advanced resistor lies a diamond-silicon carbide (Diamond-SiC) composite substrate. With a thermal conductivity exceeding 500 W/m·K—far surpassing traditional alumina or even aluminum nitride—this ultra-efficient insulating layer instantly transfers heat away from the resistive element. The result? Minimal thermal resistance, stable resistance values under extreme loads, and unmatched reliability during continuous or pulsed operation.
Precision Engineering: Thick-Film + PinFin Liquid Cooling

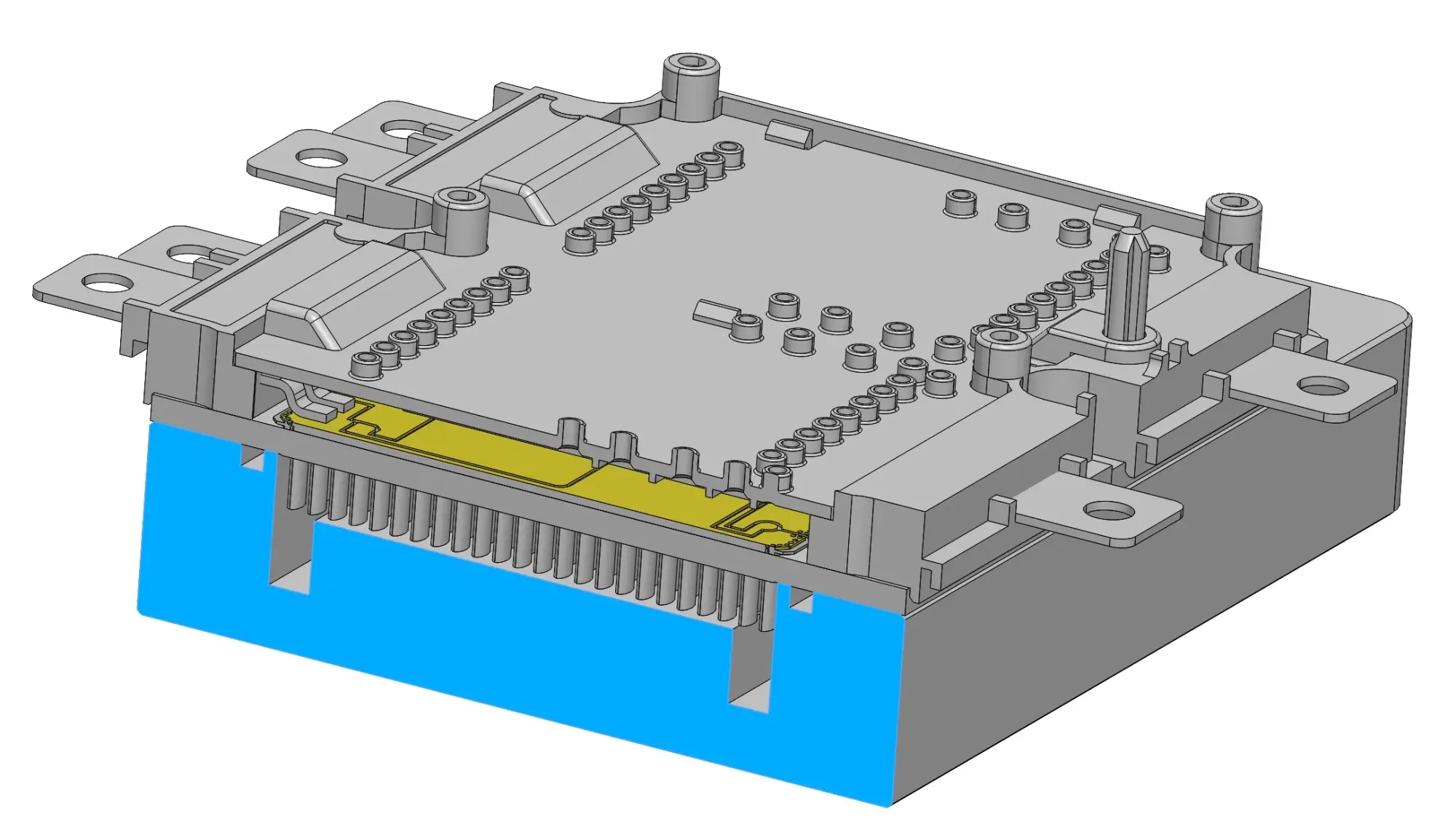

Our resistor integrates high-stability thick-film resistive paste directly onto the diamond-SiC substrate, enabling precise resistance control and low parasitic inductance—critical for fast-switching and high-frequency applications. Beneath the substrate, a copper PinFin heat sink is embedded into a sealed liquid-cooling chamber. Dual-sided coolant channels ensure turbulence-free, dead-zone-free flow, maximizing heat extraction while maintaining electrical isolation between the resistive element and coolant.
This architecture allows the unit—despite its compact footprint (typically under 220 × 200 × 60 mm)—to safely dissipate 15 to 20 kilowatts continuously, with peak pulse handling far beyond that.
Tailored for Critical Applications
- As a dump resistor : Safely dissipates regenerative energy from braking systems in EVs, trains, or cranes, preventing DC bus overvoltage.
- As a load resistor : Provides stable, controllable loading for generator testing, battery emulation, or power supply validation.
- As a pulse resistor : Handles high-current, short-duration pulses in laser systems, capacitor banks, or radar without thermal runaway.
- As an absorption resistor : Dampens voltage spikes and absorbs transient energy in snubber circuits or grid-tied inverters, enhancing system stability.
Designed for the Future
Unlike air-cooled alternatives that suffer from dust accumulation, noise, and derating at high ambient temperatures, our liquid-cooled design operates silently, efficiently, and consistently—even in harsh industrial environments. The hermetic separation between resistive element and coolant ensures long-term corrosion resistance and electrical safety.
Moreover, the modular form factor supports easy integration into liquid-cooled load banks, test rigs, or power conversion systems, reducing system footprint and simplifying thermal management infrastructure.
Conclusion: Power Density Meets Reliability
For engineers demanding high power in minimal space, the 15–20kW diamond liquid-cooled resistor isn’t just an upgrade—it’s a paradigm shift. By fusing diamond-enhanced thermal performance, precision thick-film technology, and optimized PinFin liquid cooling, it delivers unmatched performance across dump, load, pulse, and absorption roles.
Whether you’re designing next-gen EV test systems, industrial drives, or renewable energy platforms, this resistor ensures your system stays cool, stable, and scalable—now and into the future.
