As the electric vehicle (EV) industry accelerates toward higher performance, safety, and efficiency, the demand for robust, high-energy components has never been greater. Among these critical components, pulse resistors play a pivotal role in managing transient energy surges, ensuring system reliability under extreme conditions. Today, we spotlight a cutting-edge solution engineered specifically for the demanding environment of new energy vehicles: the 400J–1000J Custom Pulse Resistor in an SOT-227-like package.
What Is a Pulse Resistor?
A pulse resistor is a specialized type of resistor designed to absorb and dissipate large amounts of energy in short bursts—commonly encountered during braking, switching, or fault conditions in power electronics. Unlike standard resistors, pulse resistors must withstand high peak power without degradation, making them essential in EV inverters, onboard chargers, regenerative braking systems, and DC-link circuits.
Engineered for Extreme Conditions
Our 400J–1000J Custom Pulse Resistor is built to meet the rigorous standards of modern electric mobility. Here’s what sets it apart:
- Dual 50Ω Configuration (2×50R): Ideal for balanced circuit designs requiring symmetrical resistance paths, commonly used in half-bridge or full-bridge topologies.
- ±10% Resistance Tolerance: Ensures consistent performance across production batches while accommodating real-world circuit tolerances.
- High Voltage Rating: With a working voltage of 1500V and an insulation withstand voltage of 3kV, this resistor provides robust electrical isolation—critical for high-voltage EV architectures (800V and beyond).
- Exceptional Thermal Performance: Rated for continuous operation up to 200°C, with a peak tolerance of 230°C (customizable for even higher demands). This makes it suitable for under-hood or near-motor installations where ambient temperatures soar.
- High Energy Density: Capable of handling up to 400 joules per cubic centimeter (400J/cm³), enabling compact designs without compromising on surge-handling capability.
Robust Construction for Automotive Reliability

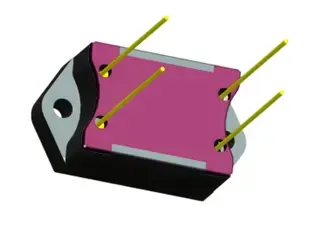

Housed in an SOT-227-like package, this pulse resistor combines industry-standard mounting compatibility with enhanced thermal and mechanical stability. The terminals are fitted with high-temperature, high-voltage wires (200mm length), ensuring secure connections even in vibration-prone automotive environments. The encapsulation materials are selected for low outgassing, flame resistance, and long-term stability under thermal cycling—key requirements for AEC-Q200 compliance in automotive electronics.
Why Pulse Resistors Matter in New Energy Vehicles
In EVs, energy management is everything. During regenerative braking, for instance, kinetic energy is converted back into electrical energy and fed into the battery. However, if the battery is fully charged or cannot accept the charge quickly enough, that excess energy must be safely dissipated—often through a braking resistor (a type of pulse resistor). Without a reliable pulse resistor, overvoltage conditions can damage inverters, capacitors, or control electronics, leading to system failure or safety hazards.
Moreover, as EV platforms shift toward 800V systems to enable faster charging and improved efficiency, component stress increases dramatically. Standard resistors simply cannot handle the resulting energy pulses. That’s where our 400J–1000J Custom Pulse Resistor steps in—offering the durability, voltage rating, and thermal resilience needed for next-generation powertrains.
Customization for Your Application
While the base specification includes dual 50Ω resistance and 200mm leads, we offer full customization:
- Adjust resistance values (e.g., 25Ω, 100Ω, or asymmetric pairs)
- Modify lead length or termination style
- Enhance thermal performance for >230°C operation
- Optimize physical dimensions for space-constrained layouts
This flexibility ensures seamless integration into your specific EV subsystem—whether it’s an onboard charger, DC-DC converter, or motor drive.
Conclusion: Power, Precision, and Protection
As the EV revolution continues, components must evolve alongside it. The 400J–1000J Custom Pulse Resistor represents the convergence of high-energy handling, automotive-grade reliability, and design flexibility—making it an indispensable asset in new energy vehicle power electronics.
If you’re designing for high-voltage, high-reliability applications and need a pulse resistor that won’t compromise under pressure, this solution delivers. Contact us today to discuss your requirements and explore how our custom pulse resistors can enhance the safety and performance of your next-generation electric vehicle.
